Polypropylene Polymer Synthetic MacroFiber For Concrete Reinforcement
Contact Person : Jack
Phone Number : 0086-13955140199
WhatsApp : +8613955140199
| Minimum Order Quantity : | 1000kgs | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12500KG/40'gp | Delivery Time : | Within 15days after order confirmation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 10000TON PER YEARS |
| Place of Origin: | Anhui | Brand Name: | ELITE-INDUE |
|---|---|---|---|
| Certification: | CE/ISO/BTTG | Model Number: | EltFiber-TWIST |
|
Detail Information |
|||
| Material: | Copolymer/Polypropylene | Elastic Modulas: | Min 4900MPa |
|---|---|---|---|
| Melting Point(C Deg.): | 160 - 170 | Density(g/cm3): | 0.91+/-0.01 |
| Tensile Strength(MPa): | 680Mpa | Length: | 38/48/54mm Or As Per Your Request |
| Crack Ratio (%): | 20+/-5 | Break Tensile Ratio(%): | 8-15 |
| Resistance To Acid & Alkali: | Excellent | Application: | Industrial Flooring |
| Type: | Synthetic | ||
| High Light: | Industrial Flooring Concrete Reinforcement Fiber,BTTG Concrete Reinforcement Fiber,BTTG PP Reinforced fiber |
||
Product Description
Polypropylene Macro Synthetic FIBER Reinforced Concrete Industrial Flooring Application
1, Description:

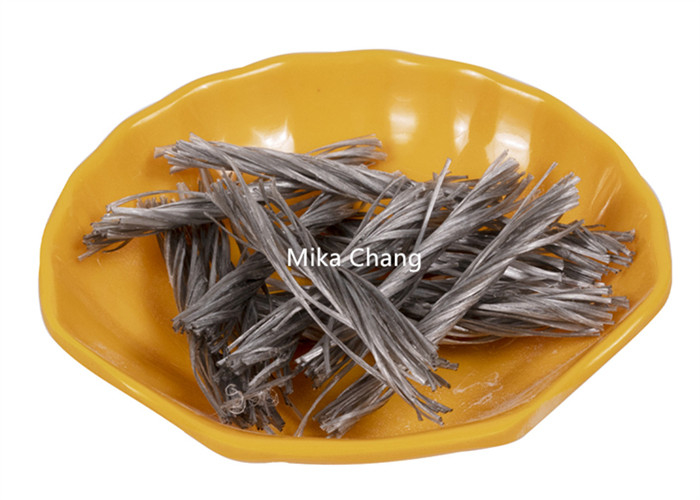

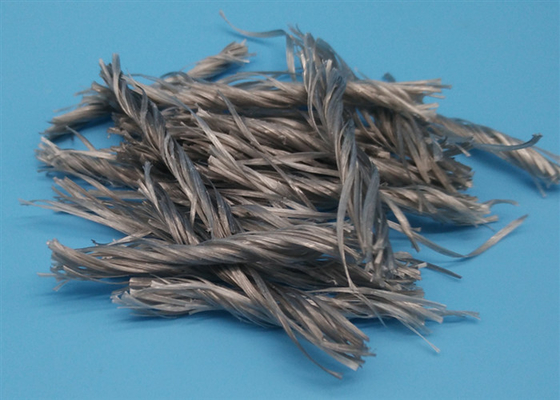

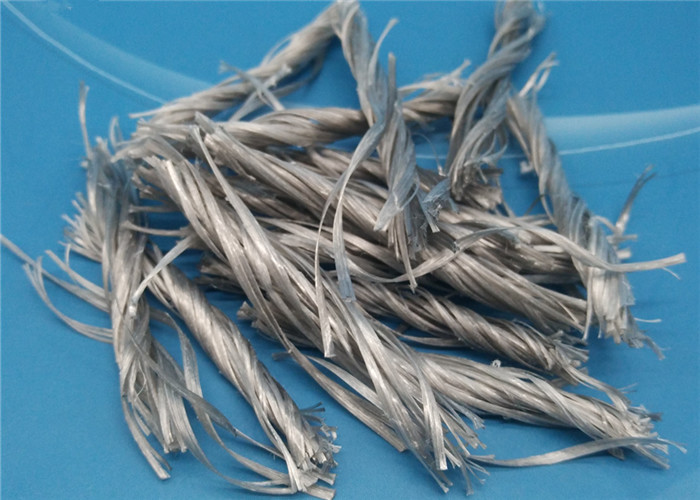

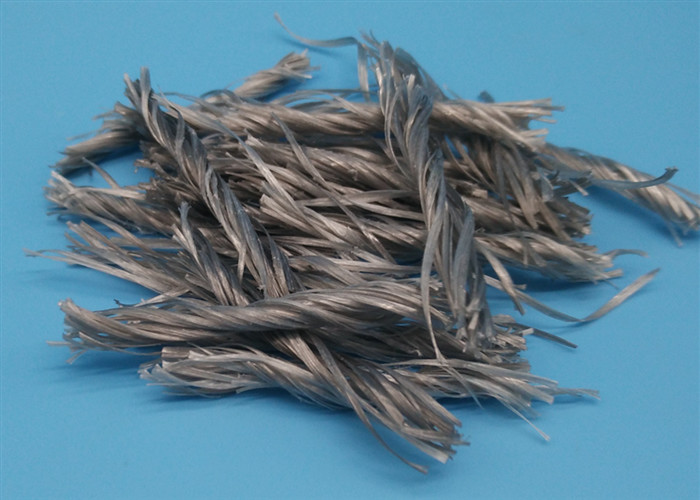

ELT-TWIST 54 Made of 100% virgin copolymer / polypropylene micro fibers, consist of twisted-bundles of monofilament fibers and used as
a primary structural concrete reinforcement.
ELT-TWIST 54 Macro synthetic fibers provide concrete with enhanced durability and toughness compared to traditional mesh.
ELT-TWIST 54 Its high performance structure yields maximum durability with no corrosion, magnetic and acid/alkali risk.

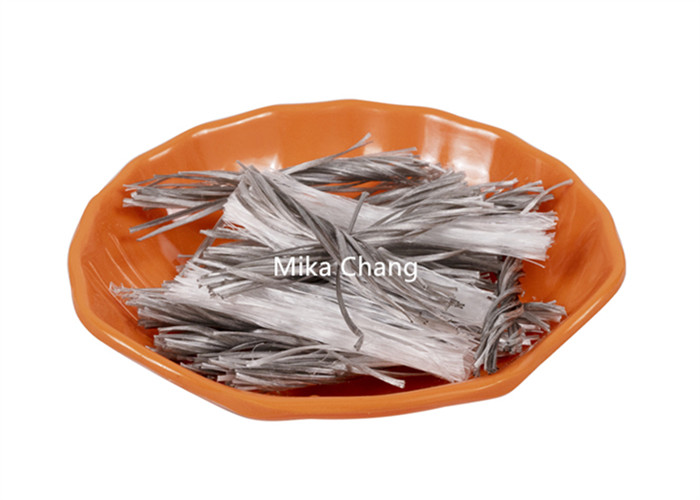

PMFT-A: 100% Twist Fiber PMFT-B: Hybrid(PP Twist Fiber Mix with PP Fibrillated Fiber)
2,Functions
2, Production Process
3,Specification:
| Density(g/cm 3 ) | 0.91 +/- 0.01 | Equivalent Dia(mm) | 0.3±0.05 |
| Shape | twist | break tensile Ratio(%) | 8-15 |
| Crack Ratio (%) | 20+/-5 | Melting point ( C. Deg) | 160-170 |
| Tensile Strength (Mpa) | 500 to 800 | Water Absorption | Negligible |
| Elastic Modulus (Mpa) | >3500 | Resistance to acid & alkali | Excellent |
| Material | Virgin Copolymer/Polypropylene | ||
| Length(mm) | 38/48 /54 or as per your request | ||
| Dosage rates will vary depending upon the reinforcing requirements and can range from 2kg/m³ to 5 kg/m³ | |||

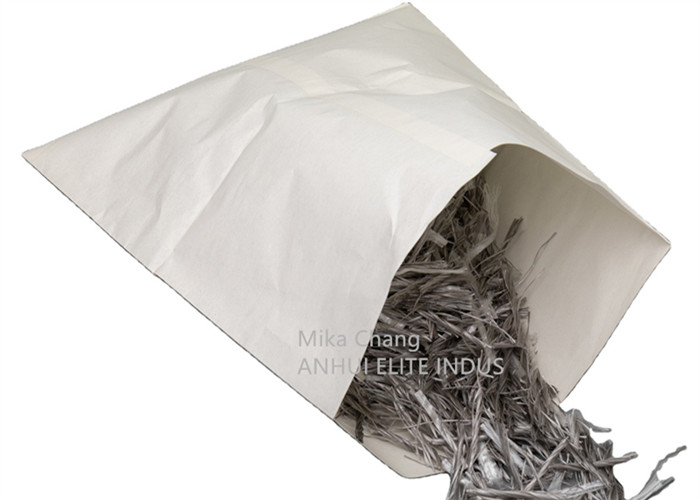

4, Packing:
| Shape | Inner Packing(PE Film Bag) | Outer Packing(Plastic Woven Bag) | 20’gp | 40’HQ |
| Twist | 0.5/1.0kg | 10kg | 5500kg | 12000kg |
| Inner Packing(Water Soluble Paper Bag) | Outer Packing (Carton) | |||
| 0.5/1.0kg | 10kg | 4000kg | 9000kg | |
| Other Packing Can As Per Your Request | ||||
5, MIXing and Dosage
ELT-TWIST can be added directly to the concrete mixing system, during or after the batching of the ingredients and mixed at high
speed for four to five minutes. Additional mixing does not adversely affect the distribution or overall performance of ELT-TWIST54 macrofiber.
The addition of ELT-TWIST 54 Macro Fiber at the recommended dosage rates to a given mix will decrease the slump; however, additional water
should not be added. Only a water reducing admixture should be used to adjust concrete to the desired workability required for placement.
Doses of ELT-TWIST 54 synthetic macro fibers varies between 2,5 kg/m3 and 5 kg/m3 depending on engineering requirements of the projects.
Homogeneous mixture is obtained by adding the fibers to the aggregate band at the batching plant or mixing at the site to the truck.
It is recommended to to add fibers after plasticizer additives and mix for at least 4 to 5 min. at high speed.
6, Application:
7,Our Mainly Product and Production Capacity as below:
|
Main Item
|
Capacity/Annual
|
||
|
Polypropylene Fiber (PP Fiber)
|
15000mts
|
||
|
Polyester Fiber(PET Fiber)
|
6000mts
|
||
|
Polyvinyl Alcohol Fiber( PVA Fiber)
|
30000mts
|
||
|
Polyacrylonitrile Fiber(PAN Fiber)
|
6000mts
|
||
|
Naphthalene Formaldehyde Sulphonate
|
300000mts
|
||
|
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
|
150000mts
|
||
|
Foam Agent
|
30000mts
|
